AI Agent

功能说明

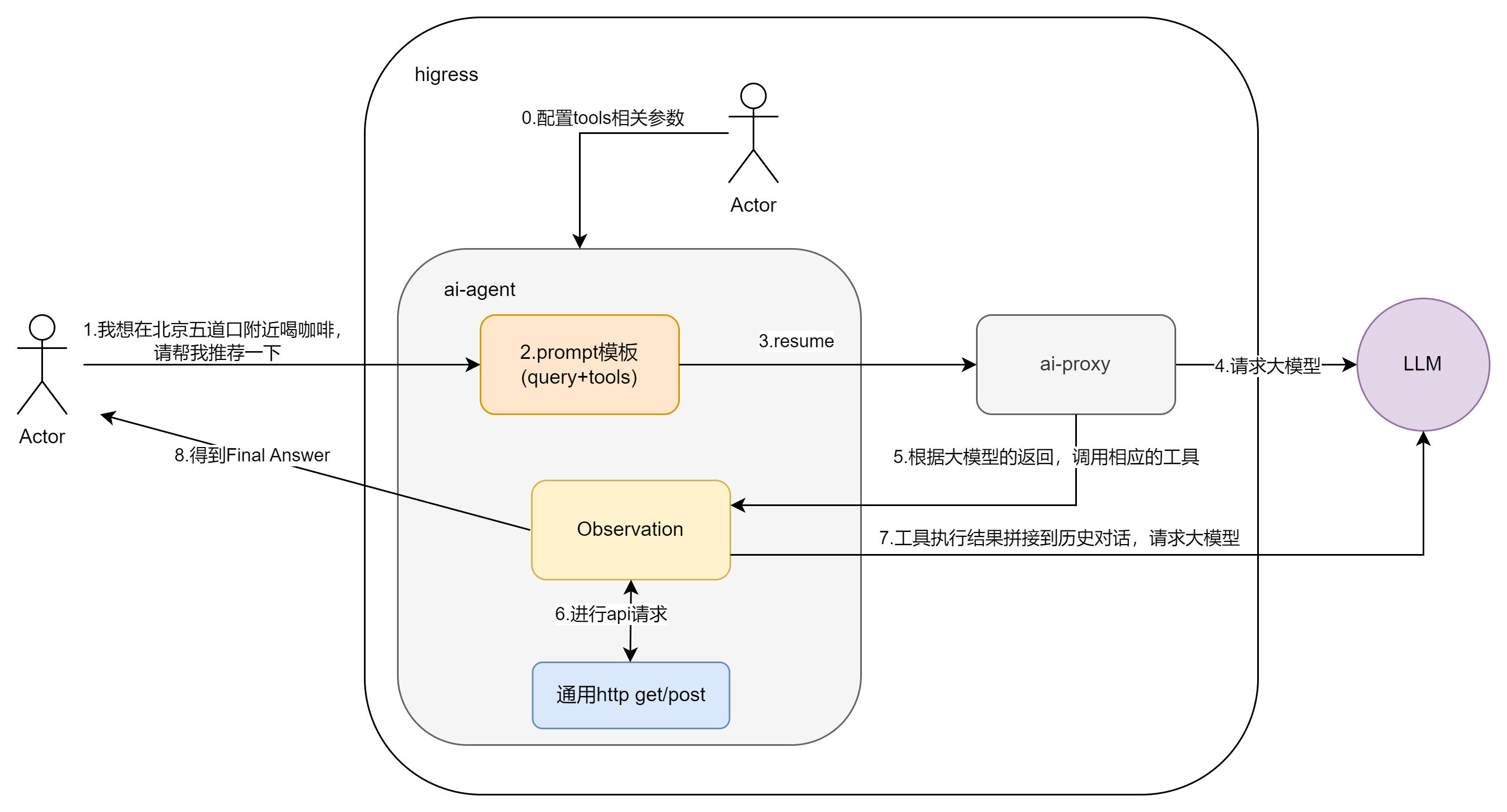

一个可定制化的 API AI Agent,支持配置 http method 类型为 GET 与 POST 的 API,支持多轮对话,支持流式与非流式模式。 agent流程图如下: ai-agent

运行属性

插件执行阶段:默认阶段 插件执行优先级:200

配置字段

基本配置

名称数据类型填写要求默认值描述
llmobject必填-配置 AI 服务提供商的信息
apisobject必填-配置外部 API 服务提供商的信息
promptTemplateobject非必填-配置 Agent ReAct 模板的信息

llm的配置字段说明如下:

名称数据类型填写要求默认值描述
apiKeystring必填-用于在访问大模型服务时进行认证的令牌。
serviceNamestring必填-大模型服务名
servicePortint必填-大模型服务端口
domainstring必填-访问大模型服务时域名
pathstring必填-访问大模型服务时路径
modelstring必填-访问大模型服务时模型名
maxIterationsint必填15结束执行循环前的最大步数
maxExecutionTimeint必填50000每一次请求大模型的超时时间,单位毫秒
maxTokensint必填1000每一次请求大模型的输出token限制

apis的配置字段说明如下:

名称数据类型填写要求默认值描述
apiProviderobject必填-外部 API 服务信息
apistring必填-工具的 OpenAPI 文档

apiProvider的配置字段说明如下:

名称数据类型填写要求默认值描述
apiKeyobject非必填-用于在访问外部 API 服务时进行认证的令牌。
maxExecutionTimeint非必填50000每一次请求API的超时时间,单位毫秒。
serviceNamestring必填-访问外部 API 服务名
servicePortint必填-访问外部 API 服务端口
domainstring必填-访访问外部 API 时域名

apiKey的配置字段说明如下:

名称数据类型填写要求默认值描述
instring非必填none在访问外部 API 服务时进行认证的令牌是放在 header 中还是放在 query 中,如果API没有令牌,填none。
namestring非必填-用于在访问外部 API 服务时进行认证的令牌的名称。
valuestring非必填-用于在访问外部 API 服务时进行认证的令牌的值。

promptTemplate的配置字段说明如下:

名称数据类型填写要求默认值描述
languagestring非必填ENAgent ReAct 模板的语言类型,包括 CH 和 EN 两种
chTemplateobject非必填-Agent ReAct 中文模板
enTemplateobject非必填-Agent ReAct 英文模板

chTemplateenTemplate的配置字段说明如下:

名称数据类型填写要求默认值描述
questionstring非必填-Agent ReAct 模板的 question 部分
thought1string非必填-Agent ReAct 模板的 thought1 部分
observationstring非必填-Agent ReAct 模板的 observation 部分
thought2string非必填-Agent ReAct 模板的 thought2 部分

用法示例

配置信息

llm:
apiKey: xxxxxxxxxxxxxxxxxx
domain: dashscope.aliyuncs.com
serviceName: dashscope.dns
servicePort: 443
path: /compatible-mode/v1/chat/completions
model: qwen-max-0403
maxIterations: 2
promptTemplate:
language: CH
apis:
- apiProvider:
domain: restapi.amap.com
serviceName: geo.dns
servicePort: 80
apiKey:
in: query
name: key
value: xxxxxxxxxxxxxxx
api: |
openapi: 3.1.0
info:
title: 高德地图
description: 获取 POI 的相关信息
version: v1.0.0
servers:
- url: https://restapi.amap.com
paths:
/v5/place/text:
get:
description: 根据POI名称,获得POI的经纬度坐标
operationId: get_location_coordinate
parameters:
- name: keywords
in: query
description: POI名称,必须是中文
required: true
schema:
type: string
- name: region
in: query
description: POI所在的区域名,必须是中文
required: true
schema:
type: string
deprecated: false
/v5/place/around:
get:
description: 搜索给定坐标附近的POI
operationId: search_nearby_pois
parameters:
- name: keywords
in: query
description: 目标POI的关键字
required: true
schema:
type: string
- name: location
in: query
description: 中心点的经度和纬度,用逗号隔开
required: true
schema:
type: string
deprecated: false
components:
schemas: {}
- apiProvider:
domain: api.seniverse.com
serviceName: seniverse.dns
servicePort: 80
apiKey:
in: query
name: key
value: xxxxxxxxxxxxxxx
api: |
openapi: 3.1.0
info:
title: 心知天气
description: 获取 天气预办相关信息
version: v1.0.0
servers:
- url: https://api.seniverse.com
paths:
/v3/weather/now.json:
get:
description: 获取指定城市的天气实况
operationId: get_weather_now
parameters:
- name: location
in: query
description: 所查询的城市
required: true
schema:
type: string
- name: language
in: query
description: 返回天气查询结果所使用的语言
required: true
schema:
type: string
default: zh-Hans
enum:
- zh-Hans
- en
- ja
- name: unit
in: query
description: 表示温度的的单位,有摄氏度和华氏度两种
required: true
schema:
type: string
default: c
enum:
- c
- f
deprecated: false
components:
schemas: {}
- apiProvider:
apiKey:
in: "header"
name: "DeepL-Auth-Key"
value: "73xxxxxxxxxxxxxxx:fx"
domain: "api-free.deepl.com"
serviceName: "deepl.dns"
servicePort: 443
api: |
openapi: 3.1.0
info:
title: DeepL API Documentation
description: The DeepL API provides programmatic access to DeepL’s machine translation technology.
version: v1.0.0
servers:
- url: https://api-free.deepl.com/v2
paths:
/translate:
post:
summary: Request Translation
operationId: translateText
requestBody:
required: true
content:
application/json:
schema:
type: object
required:
- text
- target_lang
properties:
text:
description: |
Text to be translated. Only UTF-8-encoded plain text is supported. The parameter may be specified
up to 50 times in a single request. Translations are returned in the same order as they are requested.
type: array
maxItems: 50
items:
type: string
example: Hello, World!
target_lang:
description: The language into which the text should be translated.
type: string
enum:
- BG
- CS
- DA
- DE
- EL
- EN-GB
- EN-US
- ES
- ET
- FI
- FR
- HU
- ID
- IT
- JA
- KO
- LT
- LV
- NB
- NL
- PL
- PT-BR
- PT-PT
- RO
- RU
- SK
- SL
- SV
- TR
- UK
- ZH
- ZH-HANS
example: DE
components:
schemas: {}

本示例配置了三个服务,演示了get与post两种类型的工具。其中get类型的工具包括高德地图与心知天气,post类型的工具是deepl翻译。三个服务都需要现在Higress的服务中以DNS域名的方式配置好,并确保健康。 高德地图提供了两个工具,分别是获取指定地点的坐标,以及搜索坐标附近的感兴趣的地点。文档:https://lbs.amap.com/api/webservice/guide/api-advanced/newpoisearch 心知天气提供了一个工具,用于获取指定城市的实时天气情况,支持中文,英文,日语返回,以及摄氏度和华氏度的表示。文档:https://seniverse.yuque.com/hyper_data/api_v3/nyiu3t deepl提供了一个工具,用于翻译给定的句子,支持多语言。。文档:https://developers.deepl.com/docs/v/zh/api-reference/translate?fallback=true

以下为测试用例,为了效果的稳定性,建议保持大模型版本的稳定,本例子中使用的qwen-max-0403:

请求示例

Terminal window
curl 'http://<这里换成网关公网IP>/api/openai/v1/chat/completions' \
-H 'Accept: application/json, text/event-stream' \
-H 'Content-Type: application/json' \
--data-raw '{"model":"qwen","frequency_penalty":0,"max_tokens":800,"stream":false,"messages":[{"role":"user","content":"我想在济南市鑫盛大厦附近喝咖啡,给我推荐几个"}],"presence_penalty":0,"temperature":0,"top_p":0}'

响应示例

{"id":"139487e7-96a0-9b13-91b4-290fb79ac992","choices":[{"index":0,"message":{"role":"assistant","content":" 在济南市鑫盛大厦附近,您可以选择以下咖啡店:\n1. luckin coffee 瑞幸咖啡(鑫盛大厦店),位于新泺大街1299号鑫盛大厦2号楼大堂;\n2. 三庆齐盛广场挪瓦咖啡(三庆·齐盛广场店),位于新泺大街与颖秀路交叉口西南60米;\n3. luckin coffee 瑞幸咖啡(三庆·齐盛广场店),位于颖秀路1267号;\n4. 库迪咖啡(齐鲁软件园店),位于新泺大街三庆齐盛广场4号楼底商;\n5. 库迪咖啡(美莲广场店),位于高新区新泺大街1166号美莲广场L117号;以及其他一些选项。希望这些建议对您有所帮助!"},"finish_reason":"stop"}],"created":1723172296,"model":"qwen-max-0403","object":"chat.completion","usage":{"prompt_tokens":886,"completion_tokens":50,"total_tokens":936}}

请求示例

Terminal window
curl 'http://<这里换成网关公网IP>/api/openai/v1/chat/completions' \
-H 'Accept: application/json, text/event-stream' \
-H 'Content-Type: application/json' \
--data-raw '{"model":"qwen","frequency_penalty":0,"max_tokens":800,"stream":false,"messages":[{"role":"user","content":"济南市现在的天气情况如何?"}],"presence_penalty":0,"temperature":0,"top_p":0}'

响应示例

{"id":"ebd6ea91-8e38-9e14-9a5b-90178d2edea4","choices":[{"index":0,"message":{"role":"assistant","content":" 济南市现在的天气状况为阴天,温度为31℃。此信息最后更新于2024年8月9日15时12分(北京时间)。"},"finish_reason":"stop"}],"created":1723187991,"model":"qwen-max-0403","object":"chat.completion","usage":{"prompt_tokens":890,"completion_tokens":56,"total_tokens":946}}

请求示例

Terminal window
curl 'http://<这里换成网关公网IP>/api/openai/v1/chat/completions' \
-H 'Accept: application/json, text/event-stream' \
-H 'Content-Type: application/json' \
--data-raw '{"model":"qwen","frequency_penalty":0,"max_tokens":800,"stream":false,"messages":[{"role": "user","content": "济南的天气如何?"},{ "role": "assistant","content": "目前,济南市的天气为多云,气温为24℃,数据更新时间为2024年9月12日21时50分14秒。"},{"role": "user","content": "北京呢?"}],"presence_penalty":0,"temperature":0,"top_p":0}'

响应示例

{"id":"ebd6ea91-8e38-9e14-9a5b-90178d2edea4","choices":[{"index":0,"message":{"role":"assistant","content":"目前,北京市的天气为晴朗,气温为19℃,数据更新时间为2024年9月12日22时17分40秒。"},"finish_reason":"stop"}],"created":1723187991,"model":"qwen-max-0403","object":"chat.completion","usage":{"prompt_tokens":999,"completion_tokens":76,"total_tokens":1075}}

请求示例

Terminal window
curl 'http://<这里换成网关公网IP>/api/openai/v1/chat/completions' \
-H 'Accept: application/json, text/event-stream' \
-H 'Content-Type: application/json' \
--data-raw '{"model":"qwen","frequency_penalty":0,"max_tokens":800,"stream":false,"messages":[{"role":"user","content":"济南市现在的天气情况如何?用华氏度表示,用日语回答"}],"presence_penalty":0,"temperature":0,"top_p":0}'

响应示例

{"id":"ebd6ea91-8e38-9e14-9a5b-90178d2edea4","choices":[{"index":0,"message":{"role":"assistant","content":" 济南市の現在の天気は雨曇りで、気温は88°Fです。この情報は2024年8月9日15時12分(東京時間)に更新されました。"},"finish_reason":"stop"}],"created":1723187991,"model":"qwen-max-0403","object":"chat.completion","usage":{"prompt_tokens":890,"completion_tokens":56,"total_tokens":946}}

请求示例

Terminal window
curl 'http://<这里换成网关公网IP>/api/openai/v1/chat/completions' \
-H 'Accept: application/json, text/event-stream' \
-H 'Content-Type: application/json' \
--data-raw '{"model":"qwen","frequency_penalty":0,"max_tokens":800,"stream":false,"messages":[{"role":"user","content":"帮我用德语翻译以下句子:九头蛇万岁!"}],"presence_penalty":0,"temperature":0,"top_p":0}'

响应示例

{"id":"65dcf12c-61ff-9e68-bffa-44fc9e6070d5","choices":[{"index":0,"message":{"role":"assistant","content":" “九头蛇万岁!”的德语翻译为“Hoch lebe Hydra!”。"},"finish_reason":"stop"}],"created":1724043865,"model":"qwen-max-0403","object":"chat.completion","usage":{"prompt_tokens":908,"completion_tokens":52,"total_tokens":960}}
